◔ USE FOR PRINTERS & OPTICAL EQUIPMENT - Cleanmo CM-PS714 Polyester Swab Cleaning Swabs are made specifically for cleaning sensitive equipment such as printers, microscopes, optical sensors and safe for solvent print heads.
◔ SAFE MATERIAL - Constructed from Double-layer knitted polyester that is free from organic contaminants such as silicone, amide or DOP.
◔ GOOD QUALITY- Every polyester swab head is made from the highest quality Double-layer knitted polyester securely bonded to a polypropylene shaft.
◔ MULTIPLE USES - Swabs are also great to use around the house such as A/C vents and vents around your kitchen range
◔ GREAT FOR USE- Our swabs are perfect to clean printer heads, keyboards, and tight to reach places, great use for piezoelectric photo machine print nozzles,water-based and most solvent print head.
◔ Free from silicone, amide and DOP
◔ Low in particles, ion content and non-volatile residue.
◔ Double-layer knitted polyester enhance the excellent solvent holding capacity
◔ Excellent chemical resistance--Compatible with most common solvents

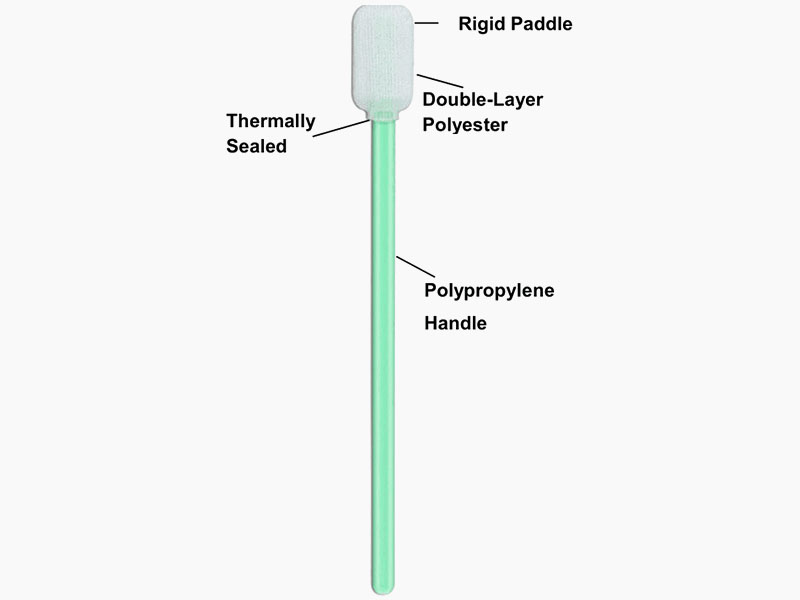

◔ 100% virgin polypropylene handle with thermally bonded cloth head ensures no additional contaminants and coatings are included
◔ With flexible Paddle-- It is easily controlled to clean
◔ Washed through EDI water at 3 times for high cleanliness
Contamination Characteristics | Technological data | |
Particles, Readily releasable | ||
Particles 0.5 um | <3000 counts/swab | |
Non-volatile Residue | ||
DI Water | <0.11 mg/swab | |
IPA | <0.02mg/swab | |
Ion Content | ||
Chloride | <0.01ug/swab | |
Sulphate | <0.01 ug/swab | |
Total anions | <0.02 ug/swab | |
No detectable silicone oil, amide or DOP |
❈ Technical Details
❈ Drawing and Size
Part NO. | head material | head width | head thickness | head length | handle material | handle width | handle length | total length | packing |
CM-PS714 (TX714A) | Polyester | 13.0 mm 0.512" | 4.0mm 0.157" | 25.0mm 0.984" | polypropylene | 5.2mm 0.205" | 103.0mm 4.055" | 128.0mm 5.039" | 100 swabs/bag 50bags/ctn |

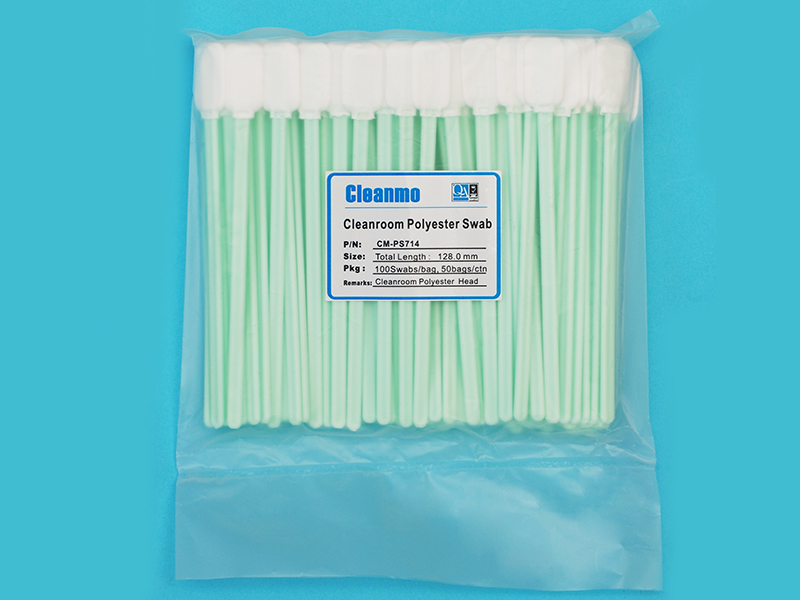

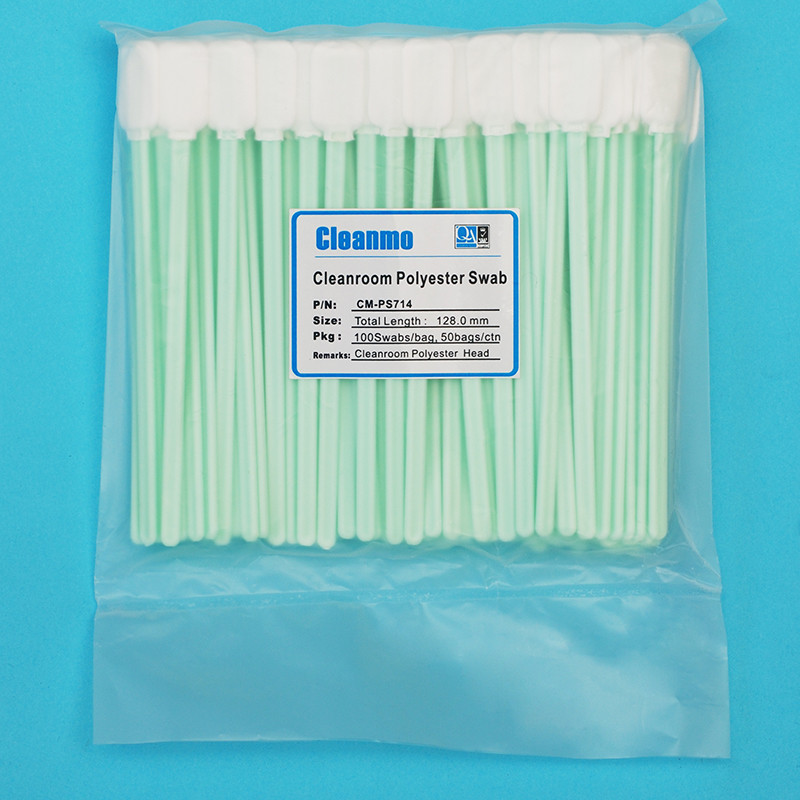

❈ Packing
Packing bag material:PO bag
Packing details:100pcs/bag,50bags/carton
The label on the packing can be customized as your requirements.

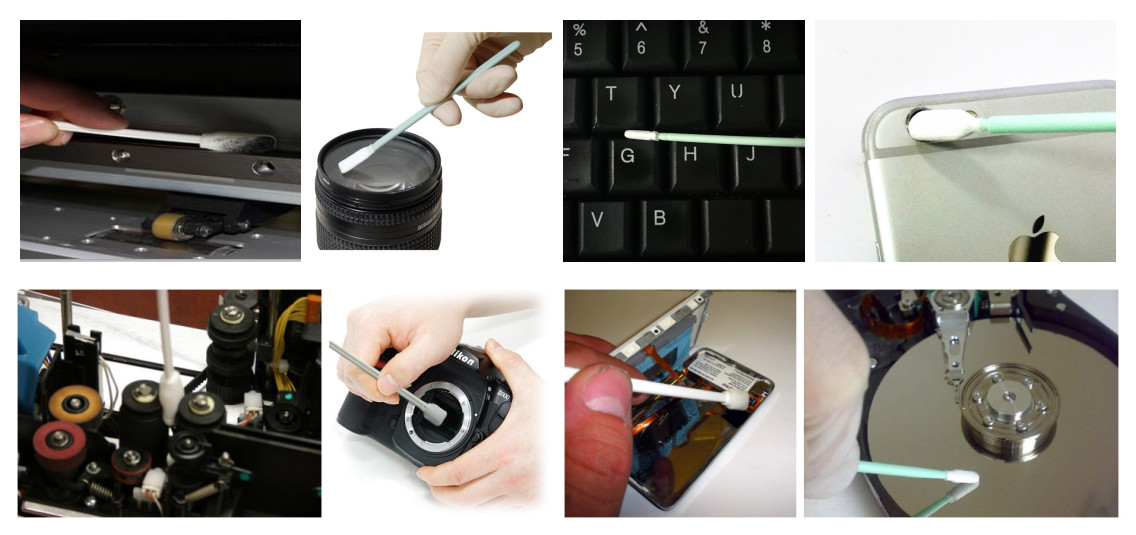

❈ Product Application
- Micro-mechanical cleaning
- Remove contamination from connectors and disk drives
- Effectively clean small, hard to reach areas with solvents such as IPA
- Remove flux residue and excess materials
- For general purpose cleaning
