Cleanroom Microber Swab CM-PS759LM

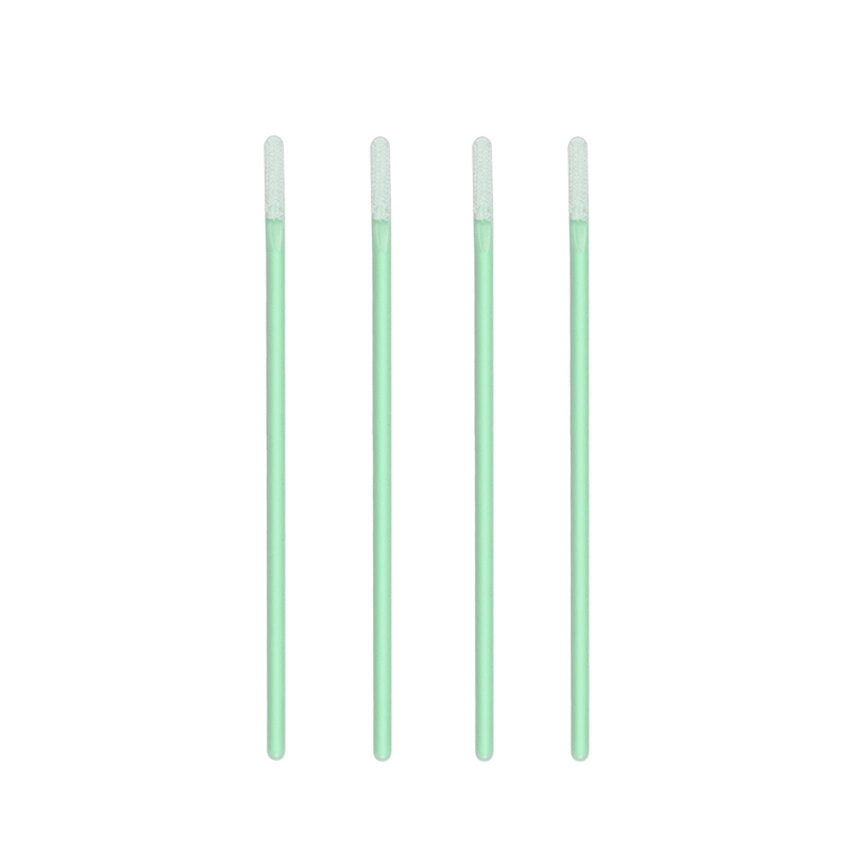

Cleanmo CM-PS759LM Cleanroom Swab
Cleanmo CM-PS759LM Cleanroom Swab is constructed from Single-layer microfiber that is free from organic contaminants such as silicone, amides or phthalate esters. The cloth is thermally bonded to the handle, thus, eliminating the use of contaminating adhesive or coatings. Laundered and packed under an ISO Class 5 Cleanroom, the polyester exhibits low particulate and ionic content. It has excellent compatibility with most common solvents including acetone as well as excellent absorbency and solvent-holding capacity.
The head is designed for cleaning small, slotted and recessed areas. The excellent cleaning is controlled and supported flexible Paddle.
The swab handle is made from polypropylene. The handle is compact and will not contribute to particulate or organic contamination. Designed for general purpose cleaning, Cleanmo CM-PS759LM Cleanroom Swabs are the ideal swabs to use in the cleanroom.
Features
● Free from silicone, amide and DOP
● Low non-volatile residue
● Low in both particles and ion content
● Good absorbency
● Compatible with most common solvents
● No contaminating adhesives or coatings
Applications
● Micro-mechanical cleaning
● Remove contamination from disk drives
● Effectively clean small, hard to reach areas with solvents such as IPA
● Remove flux residue and excess materials
● For general purpose cleaning
Product Parameters
| Green handle | |||||||||
| Part no. | Head material | Head width | Head thickness | Head length | Handle material | Handle width | Handle length | Total length | Packing |
| Cm-ps759lm | Single layer microfiber | 2.2mm 0.087" |
1.3mm 0.051" |
10.0mm 0.394" | Polypropylene | 2.2mm 0.087" |
61.0mm 2.402" | 71.0mm 2.795" | 500 swabs/bag 5 inner bags of 100 swabs 50bags/carton |
Product Details
Cleanmo Swab CM-PS759LM
| Physical Characteristics | |
| Property | Description / Typical Values |
| Head material | Single Knitted Microfiber |
| Head Bond | Thermally bonded |
| Head width | 2.2mm |
| Head thickness | 1.3mm |
| Head length | 10.0mm |
| Handle material | Polypropylene |
| Handle width | 2.2mm |
| Handle Length | 61.0 mm |
| Total Swab Length | 71.0 mm |
| Contamination Characteristics | |
| Particles, Readily releasable | |
| Particles 0.5 um | <6000 counts/swab |
| Non-volatile Residue | |
| DI Water | <0.15 mg/swab |
| IPA | <0.32 mg/swab |
| Ion Content | |
| Chloride | <0.07 ug/swab |
| Sulphate | <0.28 ug/swab |
| Total anions | <0.35 ug/swab |
| Organic Contamination | |
| No detectable silicone oil, amide or DOP. | |
| Packaging | 500 pcs /bag, 50bags/carton |
Product application
Cleanmo cleanroom swabs manufacturers dedicated to helping clients solve their most challenging product and technology issues.Please complete the form below, and our sales team will be in touch with you shortly.
