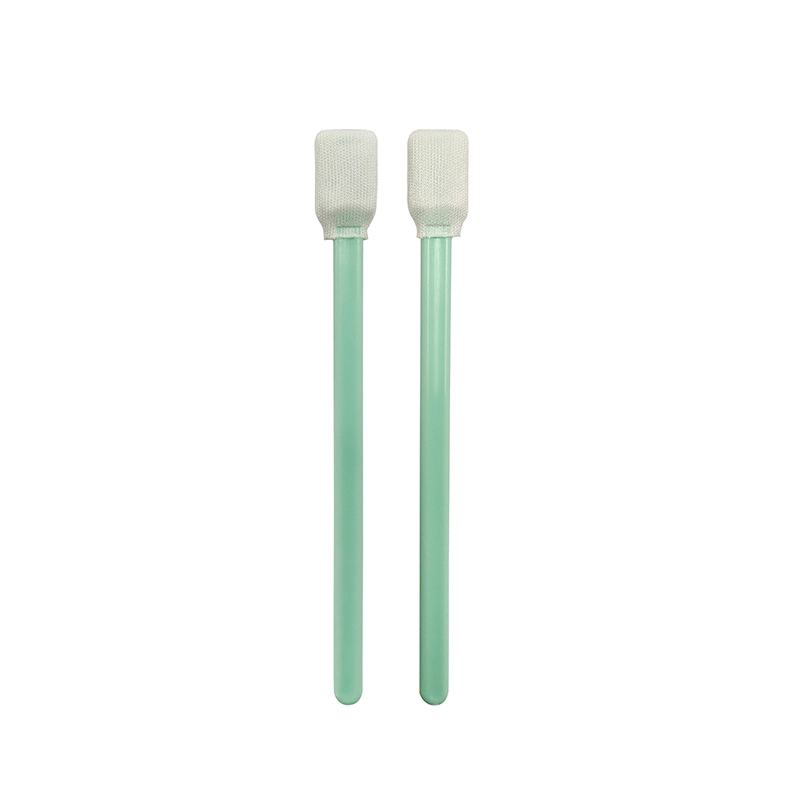

Cleanmo CM-PFS707 Cleanroom Polyester and Foam Swab
Cleanmo CM-PFS707 Cleanroom Swab is constructed from single-layer knitted polyester and compressed 100 ppi (Z) Open-cell polyurethane foam that is free from organic contaminants such as silicone, amides or phthalate esters. The cloth and foam are thermally bonded to the handle, thus, eliminating the use of contaminating adhesive or coatings. Laundered and packed under an ISO Class 5 clean room, the polyester and foam exhibits low particulate and ionic content. It has excellent compatibility with most common solvents including acetone as well as excellent absorbency and solvent-holding capacity.
The Large Rectangular Head Swab is a large, general-purpose swab for cleaning surfaces. Its polyester head possesses excellent durability and cushioning.
And open-cell polyurethane foam has excellent absorbency and solvent-holding capacity. A rigid internal paddle provides firm support.
The large polypropylene handle enables good control and ease of use. The swab handle is made from polypropylene. The handle is compact and will not contribute to particulate or organic contamination.
Features
● Free from silicone, amide and DOP
● Low non-volatile residue
● Low in both particles and ion content
● Good absorbency
● Compatible with most common solvents
● No contaminating adhesives or coatings
Applications
● Micro-mechanical cleaning
● Remove contamination from disk drives
● Effectively clean small, hard to reach areas with solvents such as IPA
● Remove flux residue and excess materials
● For general purpose cleaning
Product Parameters
Green handle | |||||||||
Part no. | Head material | Head width | Head thickness | Head length | Handle material | Handle width | Handle length | Total length | Packing |
CM-PFS707 | Polyester/Sponge | 15.0mm 0.591" |
4.0mm 0.157" |
25.0mm |
Polypropylene | 6.6mm 0.260" |
105.0mm 4.134" | 130.0mm 5.118" | 50 swabs/bag 50bags/carton |
Product Details
Cleanmo Swab CM-PFS707
Physical Characteristics | |
Property | Description / Typical Values |
Head material | Polyester/100 ppi (Z) Open-cell |
Head Bond | Thermally bonded |
Head width | 15.0mm |
Head thickness | 4.0mm |
Head length | 25.0mm |
Handle material | Polypropylene |
Handle width | 6.6mm |
Handle Length | 106.0 mm |
Total Swab Length | 131.0 mm |
Contamination Characteristics | |
Particles, Readily releasable | |
Particles 0.5 um | <6000 counts/swab |
Non-volatile Residue | |
DI Water | <=0.95 mg/swab |
IPA | <=1.3 mg/swab |
Ion Content | |
Chloride | 0.89 µg/swab |
Sulfate | 0.80 µg/swab |
Nitrate | 0.97 µg/swab |
Phosphate | 1.00 µg/swab |
Fluoride | 0.22 µg/swab |
Potassium | 0.71 µg/swab |
Calcium | 0.27 µg/swab |
Sodium | 1.88 µg/swab |
Magnesium | 0.10 µg/swab |
Total anions | <6.84 ug/swab |
Organic Contamination | |
No detectable silicone oil, amide or DOP. | |
Packaging | 50 pcs/bag, 50 bags/carton |
Product application
