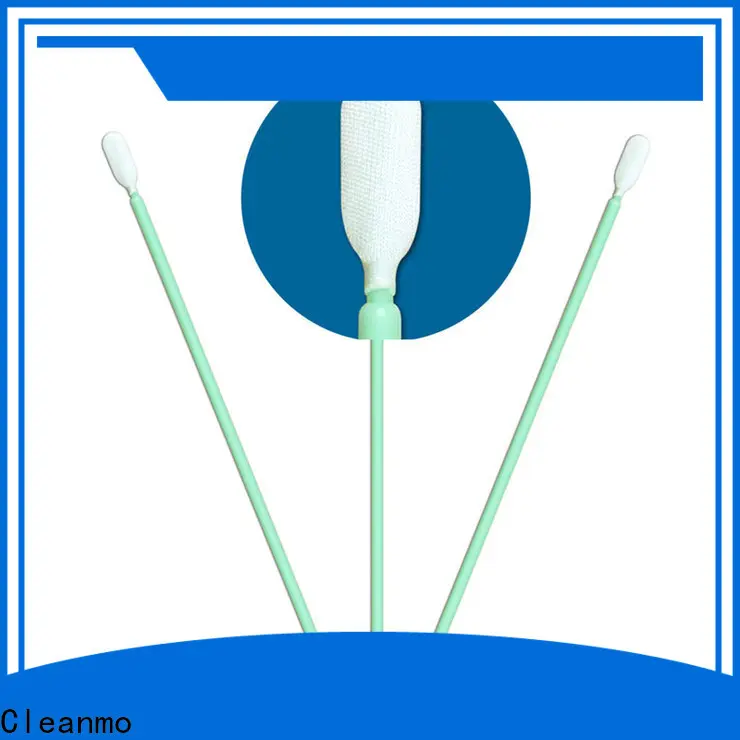

◔ USE FOR PRINTERS & OPTICAL EQUIPMENT - Cleanmo CM-PS761M Microfiber Swab Cleaning Swabs are made specifically for cleaning sensitive equipment such as printers, microscopes, optical sensors and safe for solvent print heads.
◔ SAFE MATERIAL - Constructed from Double-layer microfiber that is free from organic contaminants such as silicone, amide or DOP. The swab tip materials use thermal bonding techniques to provide a sure, clean connection to the polypropylene shaft.
◔ USE FOR PRINTERS &GOOD DESIGN - Every microfiber swab head is constructed with double layers of micro fiber fabric over foam and polyester layers. Its double layer tip design enhances cushioning and conformability to work surfaces to enhance cleaning of recessed, hard to clean surfaces and it is also the ideal for cleaning very tight areas such as 90 degree angles.
◔ MULTIPLE USES - Swabs are also great to use around the house such as A/C vents and vents around your kitchen range
◔ GREAT FOR USE - Our swabs are perfect to clean printer heads, keyboards, and tight to reach places, great use for piezoelectric photo machine print nozzles,water-based and most solvent print head.
◔ Free from silicone, amide and DOP
◔ Low in particles, ion content and non-volatile residue.
◔ Double-layer microfiber enhance the excellent solvent holding capacity
◔ Excellent chemical resistance--Compatible with most common solvents like IPA, Toluene, Acetone, NMP, Kyzen, MEK and Ethyl/Ether liquid.
◔ 100% virgin polypropylene handle with thermally bonded cloth head ensures no additional contaminants and coatings are included
◔ With flexible Paddle-- It is easily controlled to clean
◔ Washed through EDI water at 3 times for high cleanliness
Contamination Characteristics | Technological data | |
Particles, Readily releasable | ||
Particles 0.5 um | <3000 counts/swab | |
Non-volatile Residue | ||
DI Water | <0.11 mg/swab | |
IPA | <0.02mg/swab | |
Ion Content | ||
Chloride | <0.01ug/swab | |
Sulphate | <0.01 ug/swab | |
Total anions | <0.02 ug/swab | |
No detectable silicone oil, amide or DOP |
❈ Technical Details
❈ Drawing and Size
Part NO. | head material | head width | head thickness | head length | handle material | handle width | handle length | total length | packing |
CM-PS761M | microfiber | 5.8mm 0.228" | 2.9mm 0.114" | 16.4mm 0.646" | polypropylene | 3.2mm 0.126" | 145.0mm 5.709" | 162.0mm 6.378" | 500 swabs/bag 5 inner bags of 100 swabs |
❈ Packing
Packing material:PO bag
Packing details:500pcs/bag,10bags/carton
The label on the packing can be designed as your requirements.
❈ Product Application
Cleanmo
- Micro-mechanical cleaning
- Remove contamination from connectors and disk drives
- Effectively clean small, hard to reach areas with solvents such as IPA
- Remove flux residue and excess materials
- For general purpose cleaning
